4m X 3m Digital Signage Turnkey Complete System LED Display 500mmx1000mm LED Panel Backdrop Outdoor LED Screen
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | गुआंग्डोंग |
| ब्रांड नाम: | Charmingled |
| प्रमाणन: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| मॉडल संख्या: | पी2.9 पी3.91 |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 2 पीसी |
|---|---|
| मूल्य: | विनिमय योग्य |
| पैकेजिंग विवरण: | कार्टन केस, वुडन केस, फ्लाइट केस |
| प्रसव के समय: | भुगतान के बाद 30 कार्य दिवस |
| भुगतान शर्तें: | एल/सी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति की क्षमता: | प्रति सप्ताह 1000 पीसी |
|
विस्तार जानकारी |
|||
| प्रकार संख्या: | पी2.976 पी3.91 | चमक: | ≥3500 सीडी/㎡ |
|---|---|---|---|
| रिफ्रेश दर (हर्ट्ज): | 7680Hz | कैबिनेट सामग्री: | एल्यूमीनियम मिश्र धातु |
| रखरखाव पद्धति: | पीछे का रखरखाव | जीवन काल: | ≥50000 घंटे |
| प्रमुखता देना: | 4m x 3m outdoor LED screen,500mmx1000mm LED panel display,turnkey digital signage system |
||
उत्पाद विवरण

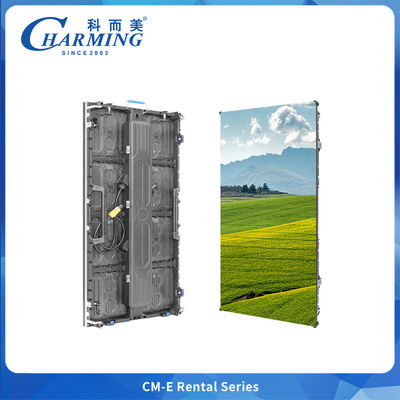

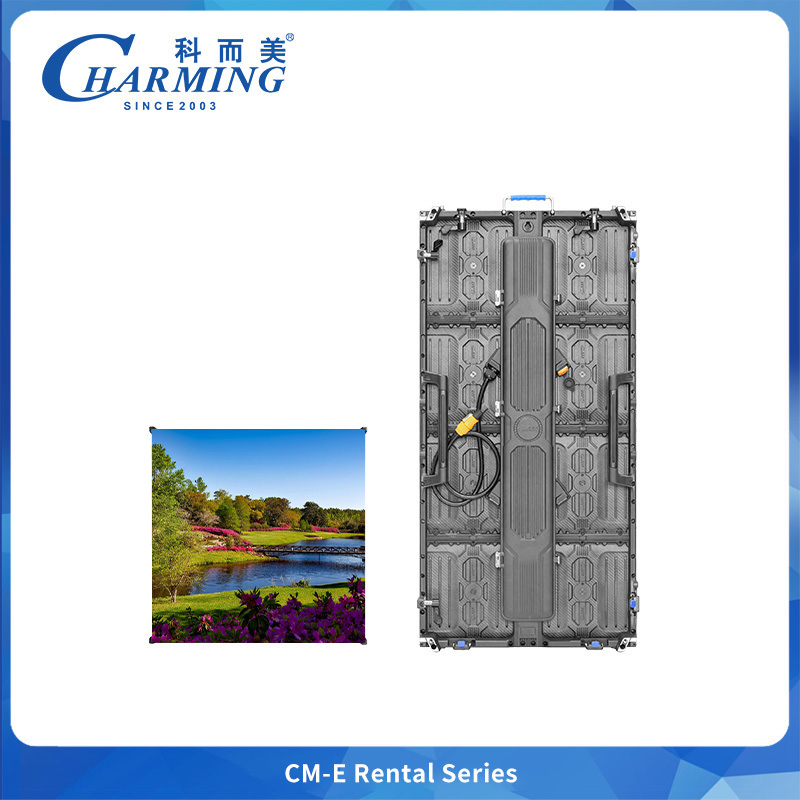

4m X 3m Digital Signage Turnkey Complete System LED Display 500mmx1000mm LED Panel Backdrop Outdoor LED Screen
Product Specification Table
| Parameter | P2.976 (500x500) | P2.976 (500x1000) | P3.91 (500x500) | P3.91 (500x1000) |
| Dimension (MM) | 500x500x79MM | 500x1000x79MM | 500x500x79MM | 500x1000x79MM |
| Max. Power (W) | 200W | 400W | 200W | 400W |
| Cabinet Weight (KG) | 6.4KG | 11KG | 6.4KG | 11KG |
| Brightness (CD/m²) | ≥3500 CD/m² | ≥3500 CD/m² | ≥3500 CD/m² | ≥3500 CD/m² |
| LED Standard | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Viewing Angle | 140° | 140° | 140° | 140° |
| Protection Level | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate (Hz) | 7680Hz | 7680Hz | 7680Hz | 7680Hz |
| Pixel Pitch (MM) | 2.976MM | 2.976MM | 3.91MM | 3.91MM |
| Scan Mode | 1/21 Scan | 1/21 Scan | 1/16 Scan | 1/16 Scan |
| Pixel Density (Dot/m²) | 112896 Dot/m² | 112896 Dot/m² | 65536 Dot/m² | 65536 Dot/m² |
| Cabinet Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Maintenance Method | Back Maintenance | Back Maintenance | Back Maintenance | Back Maintenance |
| Grey Level | 14-16 Bit | 14-16 Bit | 14-16 Bit | 14-16 Bit |
| Working Temperature | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ |
| Working Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
| Life Span | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours |
| Working Voltage | AC 110V/220V, ±15% | AC 110V/220V, ±15% | AC 110V/220V, ±15% | AC 110V/220V, ±15% |
Company Introduction
Chuangming Lighting is committed to providing value beyond the product itself. Our dedicated technical R&D team offers one-stop service from pre-sales, sales, and after-sales, including on-site installation guidance, product project design, and comprehensive project support.
✨ New Product Features
Multi-dimensional Professional Support: From product selection and solution design to on-site installation and commissioning, our expert team is on hand to assist you throughout the entire process.
Quick Response Mechanism: We have established a comprehensive and efficient customer service process to ensure your inquiries receive a prompt response and resolution.
Customized Solutions: We understand that every project is unique, and we are happy to provide customized products and solutions based on your specific needs.
Upgraded Design
Our service offerings are constantly evolving. We not only sell hardware, but also provide comprehensive solutions including software, content management, and system integration.
If you have an innovative but complex project, please contact us today. Let us bring your creative ideas to life with our professional technology and service.
